HUAWEI S5755-H24N4Y-A (24*10/100/1000/2.5GBASE-T ports, 4*25GE SFP2

Artikelnr:
02355NEC

För mer information om produkter eller konfigurationer av Huawei Networking kontakta Hawre Stark, +46 8 587 237 35, hawre.stark@pedab.se. Leveranstid 2 veckor.
Beskrivning

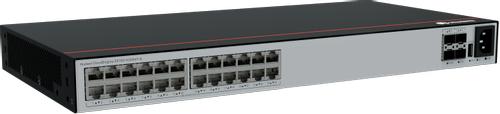

S5755-H24N4Y-A (24*10/100/1000/2.5GBASE-T ports, 4*25GE SFP28 ports, built-in AC power, front access)

Basic Information
Part Number
02355NEC
Model
S5755-H24N4Y-A
Description
S5755-H24N4Y-A (24*10/100/1000/2.5GBASE-T ports, 4*25GE SFP28 ports, built-in AC power, front access)
Technical Specifications
Height [mm]
43.6 mm
Depth [mm]
220.0 mm
Wide [mm]
442.0 mm
Chassis height [U]
1
Weight with packaging [kg(lb)]
4.45 (9.81)
Weight without packaging [kg(lb)]
3.83 (8.44)
Maximum power consumption [W]
100% traffic under the ATIS standard:
69 W
Typical power consumption [W]
30% traffic under the ATIS standard:
65 W
Typical heat dissipation [BTU/hour]
30% traffic under the ATIS standard:
221.79
Maximum heat dissipation [BTU/hour]
100% traffic under the ATIS standard:
235.43
Heat dissipation mode
Air cooling for heat dissipation, intelligent fan speed adjustment
Power supply mode
AC built-in
Input voltage range [V]
AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
Rated input voltage [V]
AC input: 100–240 V AC; 50/60 Hz
Maximum input current [A]
3 A
Number of card slots
0
Number of power slots
0
Memory
4 GB
Flash memory
Physical space: 2 GB
Redundant power supply
Not supported
Types of fans
Built-in
Noise at normal temperature (acoustic pressure) [dB(A)]
35.2
Noise at normal temperature (acoustic power) [dB(A)]
47.2
Airflow direction
Air intake from left and air exhaust from right
Short-term operating temperature [°C(°F)]
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met:
- The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year.
- The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.
- The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year.
If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.
Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Long-term operating temperature [°C(°F)]
–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Storage temperature [°C(°F)]
–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]
5% RH to 95% RH (non-condensing)
Storage altitude [m(ft.)]
0-5000 m (0-16404 ft.)
Long-term operating altitude [m(ft.)]
0–5000 m (0–16404 ft.)
MTBF [year]
51.06
MTTR [hour]
2.35
Availability
> 0.99999
Maximum number of physical ports on the entire device
28
Maximum number of 100GE ports
0
Maximum number of 40GE ports
0
Maximum number of 25GE ports
4
Maximum number of 10GE ports
4
Maximum number of GE ports
28
Maximum number of FE ports
24
25G optical interface
4
USB
Not supported
Console port
USB
Eth Management port
RJ45
Power supply surge protection
Differential mode: ±6 kV; common mode: ±6 kV
RPS input
Not supported
PoE
Not supported
